Show the Matrice M30T in action flying in the snowy mountains, doing aerial surveying

Summary

The DJI Matrice 30T (M30T) is a rugged, enterprise‑grade quadcopter that integrates wide, zoom, thermal and laser‑rangefinder sensors into a single, foldable platform. With an IP55 weather‑resistant rating and operation from –20 °C to 50 °C, it delivers up to 41 minutes of flight time and an unobstructed transmission range of up to 15 km (FCC). The M30T is ideal for search‑and‑rescue, inspection, firefighting support and industrial monitoring in harsh environments.

Flight Time

With a dual TB30 battery, the M30T achieves up to 41 minutes of flight, and dual‑battery controller operation extends mission control to roughly six hours.

Environmental Rating

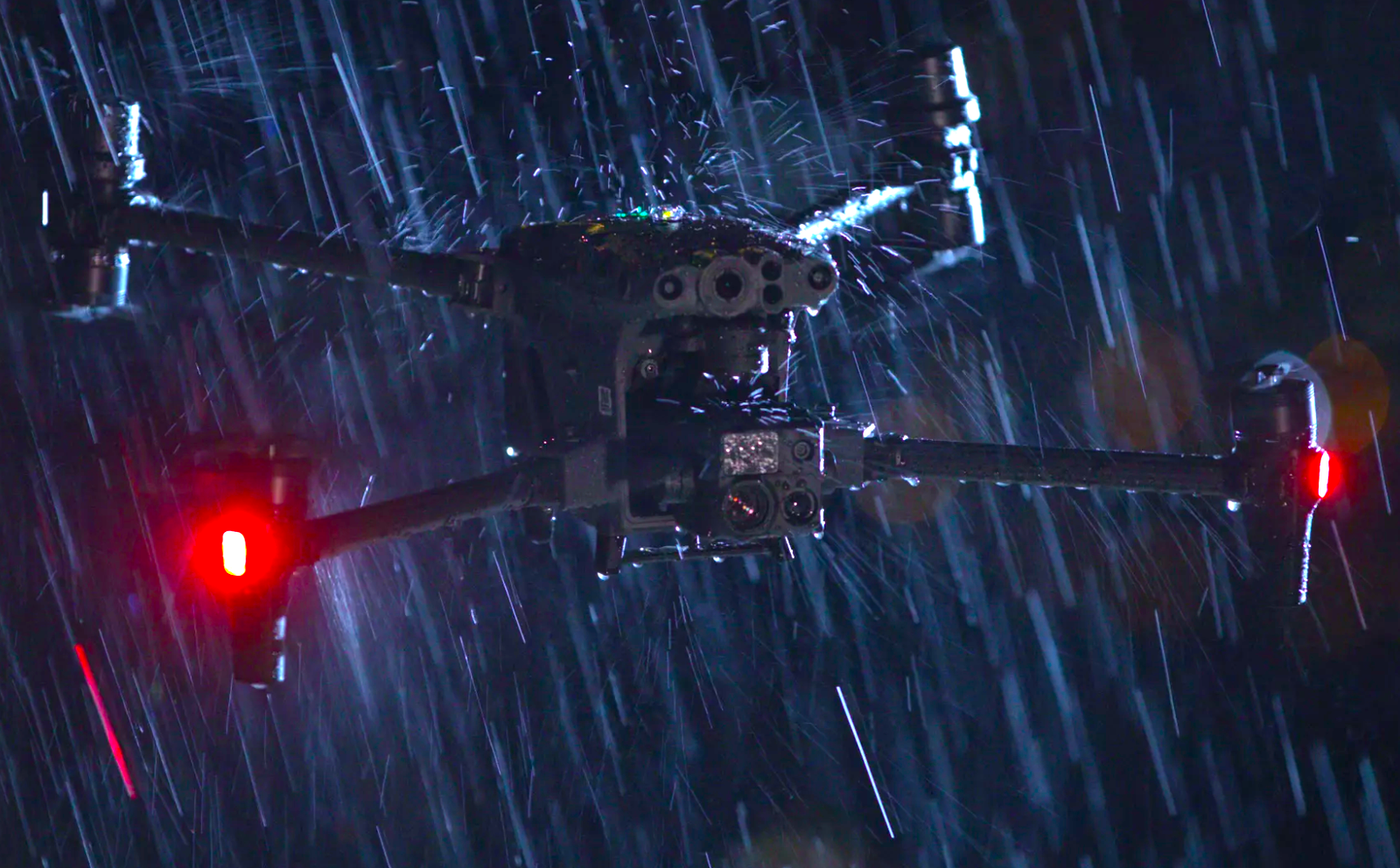

The M30T’s IP55 rating means it blocks harmful dust ingress and withstands low‑pressure water jets from any direction, allowing flight in rain, dust storms or smoky conditions

The Matrice 30T integrates a 12 MP wide‑angle camera, a 48 MP zoom camera with 5–16× optical (up to 200× digital) zoom, a radiometric thermal sensor (640 × 512 px), and a laser rangefinder accurate to ±(0.2 m + 0.15 %) out to 1 200 m. Its foldable carbon‑fiber frame measures 365 × 215 × 195 mm (folded) and weighs approximately 3 770 g with two TB30 batteries

  • Captures 4K/30 fps video on the wide‑angle cam and detailed shots with 200× zoom; thermal imagery is fully radiometric for precise temperature mapping.

  • Six‑directional dual‑vision and ToF sensors detect obstacles up to 40 m away; built‑in ADS‑B warns of nearby crewed aircraft.

  • Triple‑channel 1080 p video auto‑switches between 2.4 GHz and 5.8 GHz, encrypted via AES‑256, with an LTE backup option.
